Blind Temperature Controller

Digital portable battery operated Thermometer

Digital Temperature Indicating Controller Dual Setpoint

Digital Temperature Indicating Controller

Digital Temperature Controller cum Timer

Industrial Water Immersion Heaters

Oil Immersion Heaters

Long life Finned air Heaters

Commercial Water Immersion Heaters

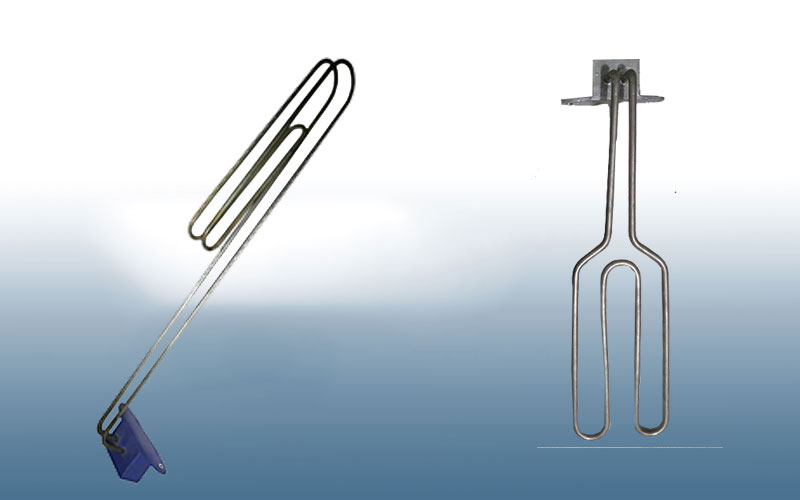

Chemical & Alkaline Immersion Heaters

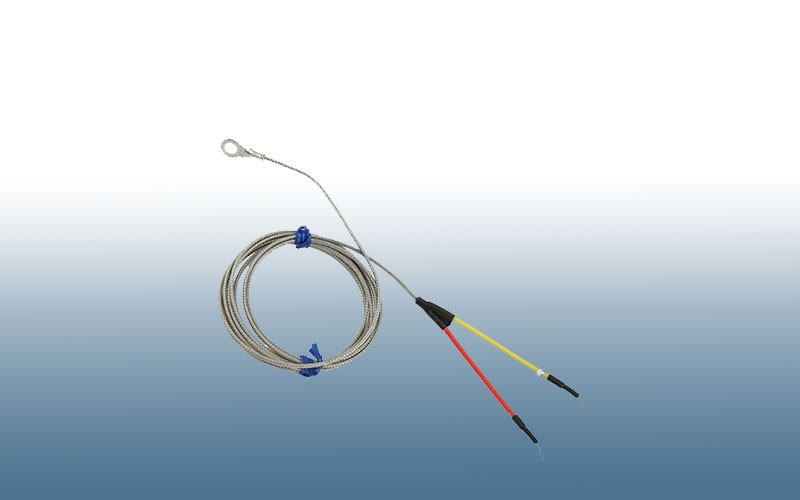

Washer Thermocouple

Bayonet Thermocouple & RTD

Mineral Insulated Protection Head RTD

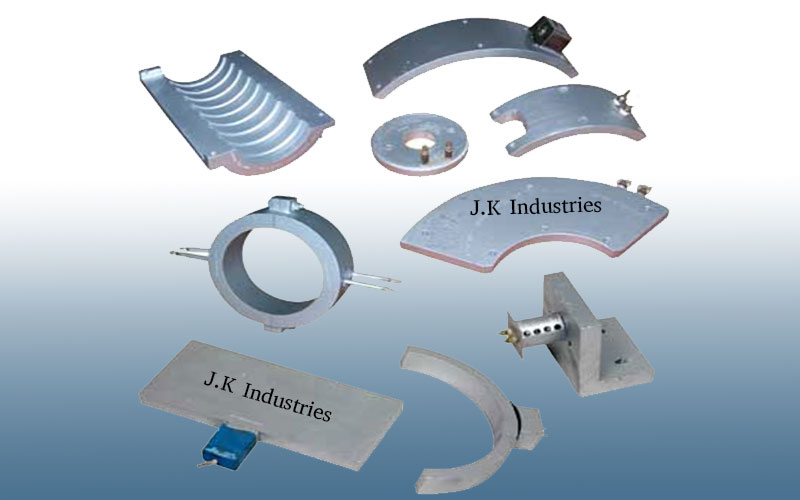

Cast Iron Heaters

Cartridge Heaters

Tubular heaters

Band Heaters

Mineral Filled Strip / Flat Heaters

Specifications :

Make	J.K.Industries
Model	JK 102
Type	K, J
Range	J- 0 to 400°C, K - 1200ºC
Accuracy	± 1% of Span
Control action	On / Off
Relay rating	5 Amps 220V AC
Supply Voltage	220V AC ± 10%
Dimension	96 × 96 × 110 mm
Panel cutout	92 × 92 Sq mm

Specifications :

Make	J.K.Industries
Model	JK 104
Type	K, J, R, S and PT 100
Range	-150°C to 1600°C
Display	3 1/2 digit LCD
Accuracy	±0.3% of Reading ±1 Digit
Supply Voltage	9V, DC Battery
Low Bat Indication	Indicated by "LO BAT" suitable for wide range of probes for different applications.
Option	OMEGA plug for TC input socket

Specifications :

Make	J.K.Industries
Model	JK 103
Type	K, J, R, S and PT-100 RTD
Range	150 MC to 1600'C
Calibration accuracy	+/- 3% of reading •/• 1 3VS digit
Display	31/2 digit Bright LED
Controller output	Relay output with One NO & NC, 5 Amps contacts rated 220V AC
Power Supply	110V/220V AC +/-10% AT
Dimension	96 X 96 X 160mm
Panel Cutout	92 X 92 Sq mm

Specifications :

Make	J.K.Industries
Model	JK 101
Type	K, J, R, S and PT 100
Range	-150 C to 1600 C
Setpoint	Single, Two, Three by potentio
Meter	Multi turn control pot
Display	31/2 digit bright LED display
Control Output	Relay output with one no. & NC/5Amps contacts rated 240V AC
Power supply	110V /220V AC, M 0% at 50 c/s
Accuracy	+/- 03% of reading 1 Digit
Dimension	96 X 96 X 110mm depth & 72 X 72 X 110mm depth
Panel cutout	92 X 92 Sq mm & 68 X 68 Sq mm

Specifications :

Make	J.K.Industries
Model	JK 101
Type	K, J, R, S and PT 100
Range	-150 C to 1600 C
Setpoint	Single, Two, Three by potentio
Meter	Multi turn control pot
Display	31/2 digit bright LED display
Control Output	Relay output with one no. & NC/5Amps contacts rated 240V AC
Power supply	110V /220V AC, M 0% at 50 c/s
Accuracy	+/- 03% of reading 1 Digit
Dimension	96 X 96 X 110mm depth & 72 X 72 X 110mm depth
Panel cutout	92 X 92 Sq mm & 68 X 68 Sq mm

Specifications :

Make	J.K.Industries
Model	JK 105
Type	K, J, R, S and PT-100
Range	150°C to 1200°C
Setpoint	Single, by Potentio Meter multi-turn control pot
Display	3 1/2 digit bright 'LED' display
Control output	Relay output with one NO & NC 5Amps, Contacts rated 240V AC
Power supply	110V / 220V AC +/-10% at 50 C/S
Accuracy	+/-0.3% reading ± 1 digit
Dimension	96(H) × 192 (W) × 200(D)
Panel cutout	92 × 184 mm

We are offering Bayonet Thermocouple & RTD which have fixed & adjustable Bayonet Thermocouple & RTD (PT 100) most suitable for Measuring Barrel & Die Temperature, Injection Moulding Machine, Blow Moulding Machine, Extruder etc. Spring Loaded sensor ensures tip contact with surface for accurate temperature measurement.

Specifications :

Junction type	Grounded (Applicable for Thermocouple only)
Tip materal	SS 316
Spring length	6” (Applicable for ‘D’ type constructions only)
Cable type	FG/FG/SS individual fibreglass, Overall fibereglass with SS overbraiding
Cable lenth	Standard – 1 mtr. Additional length in multiples of 1 mtr.

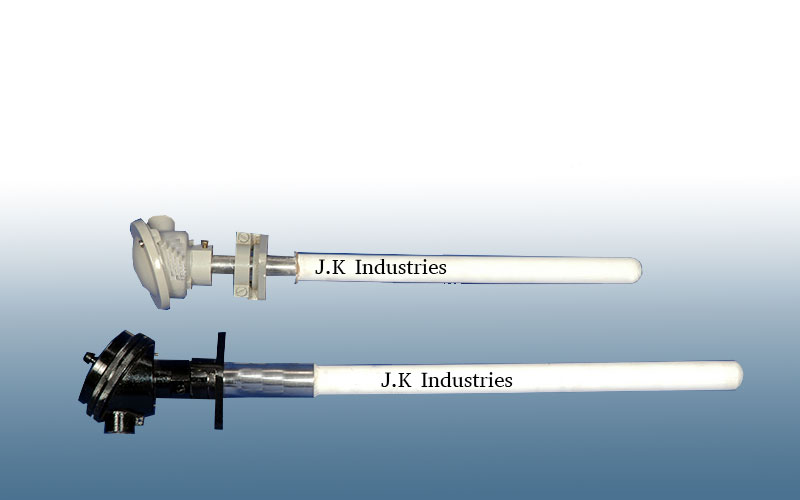

We are offering Mineral Insulated Protection Head RTD type PT 100 which is General Purpose Mineral Insulated (Machine Filled, MI) RTD Assemblies for higher temperature up to 600°C with superior response time.

Specifications :

Calibration	As per DIN 43760
Configuration	Simplex/Duplex
Lead Configuration	3 wire system
Accuracy	Class B. +0.8 Deg C at 100 Deg.C
Sheath Length	Max. length – No bar. However for length above 2000 MM Insulation : MGO (Mineral Insulated)
Process connection (*)	Optional, Available with BSP,BSPT,NPT threads- fixed or adjustable compression fitting
Cable length	Standard – 1 Mtr. Additional in multiples of 1 Mtr

Junction	Grounded
Washer material	Copper
Cable length	Standard – 1 Mtr. Additional Lengthin multiples or 1 Mtr.
Cable type	FG/FG/SS –Individual fiberglass, Overall fibreglass with SS overbraiding PTFE/PTFE – Individual PTFE, Overall PTFE.
